Charge-M8© Omega 30kW DC EV Charger. 450-4030

Charge-M8 Omega 30kW DC Wall-Mounted CCS2O CPP 1.6 4G RJ45 Inc Cable Management 3 Year Warranty & ENVEVO Bronze Level SLA

Product Features

• Fully EVSCP compliant
• The Omega DC charger offers high efficiency through advanced soft-switching technology, ensuring stable performance and a peak efficiency of ≥96%. ​
• It includes a 7-inch touch screen for user interaction, LED status indicators, and comprehensive electrical and thermal protection.
• Designed for all-weather use, it operates within a temperature range of -30°C to +55°C and has an IP55 protection level.
• Connectivity options include built-in 4G, RJ45 Ethernet, and Wi-Fi (2.4 GHz), supporting OCPP 1.6 for platform communication. ​

Technical Specifications

• Power rating: 30 kW; Input voltage: 400 ±10% V AC; Output voltage: 200 to 1000 V DC; Maximum output current: 100 A. ​
• Compatibility with CCS2 connector and adherence to safety standards EN 61851-23 and EN 61851-1. ​

Warranty Information

• Charge-M8 provides a 3-year warranty against manufacturing defects, contingent on compliance with installation and servicing guidelines. ​
• Warranty includes Bronze on-site support, with options to upgrade to Silver or Gold service levels.

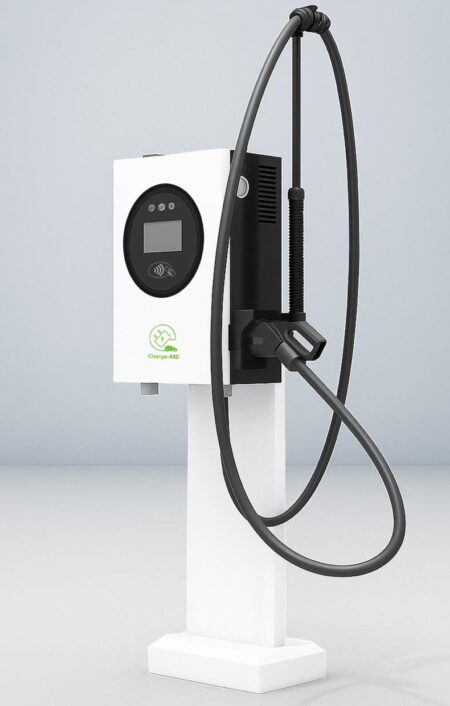

Note the image shows the product mounted on a pedestal.  The product price does NOT include the pedestal, which can be purchased here.
